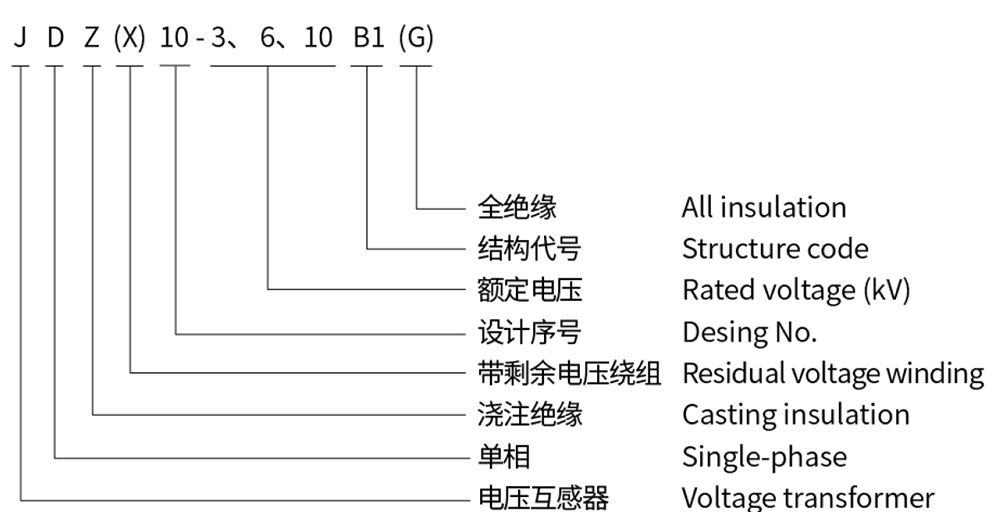

型號含義 Type description
技術(shù)參數(shù)Technical data
型號 Type | 額定電壓比 Rated voltage ration (V) | 額定二次輸出 Rated secondary out put(VA) | 極限輸 出Max. output (VA) | 額定絕緣 水平Rated insulation level(kV) | 備注 Notes | 接線圖 Wiring diagram | ||||||||
0.2 | 0.5 | 1級 | 3級 | 0.2/0.2 0.2/0.5 | 0.5/0.5 | 6P | ||||||||
JDZ10-3B1 | 3000/100 |
30 |
50 |
100 |
200 |
/ |
/ | / |
600 | 3.6/25/40 | 等同 “RZLlO” Same“ RZIOL” |

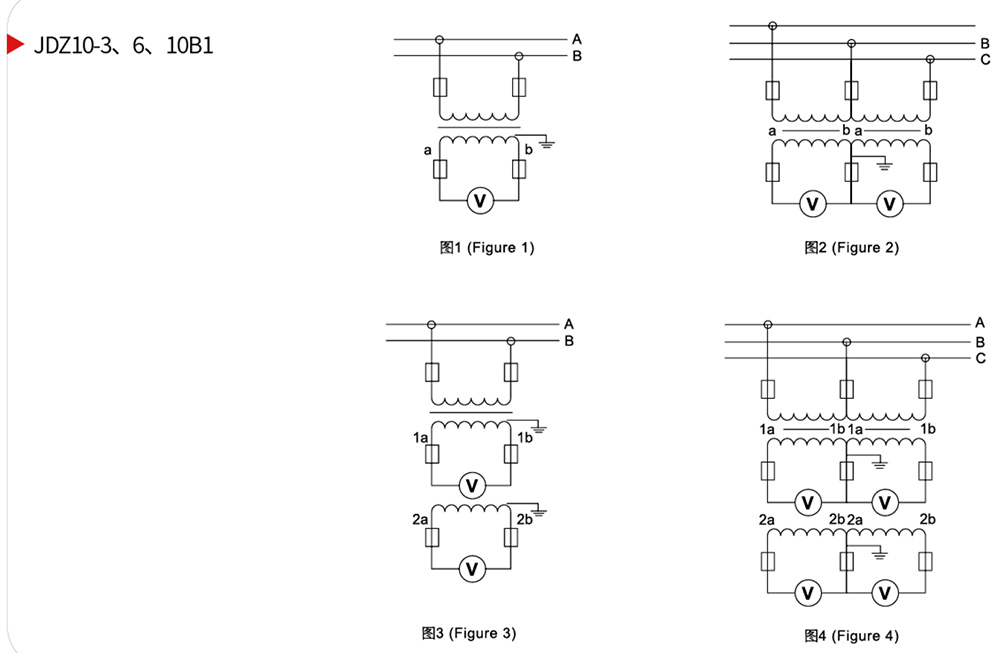

圖1-圖2 Fiagure l-2 | ||
JDZ10-6B1 | 6000/100 | 7.2/32/60 | ||||||||||||
JDZ10-10B1 | 10000/100 | 12/42/75 | ||||||||||||
10000/100/100 | / | / | / | / | 15/15 15/20 | 30/30 | 300/300 |
圖3-圖4 Fiagure 3-4 | ||||||
10000/100/220 | 0.2/3---30/500 0.5/3---50/500 | 1000 | ||||||||||||
JDZX10-3B1(G) | 3000 100 100 J3 √3 √3 |
30 |
50 |
100 |
200 |
/ |
/ |
100 |
400 | 3.6/25/40 |

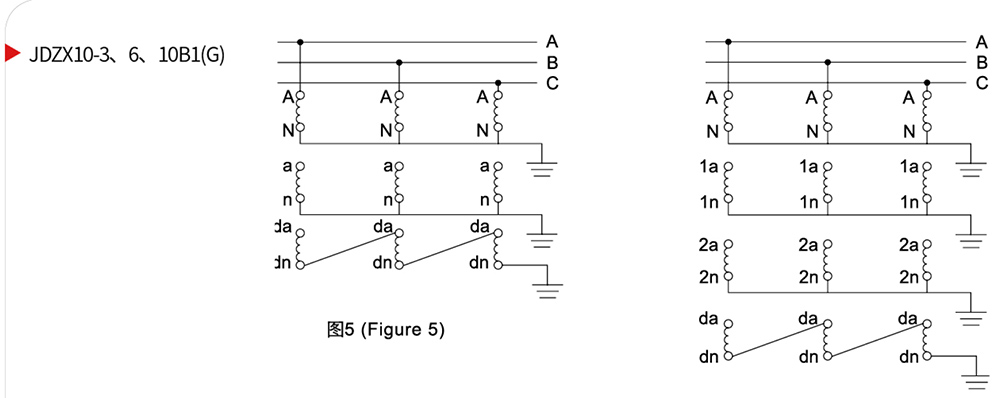

圖5 FiaqUre 5 | |||
JDZX10-6B1(G) | 6000 100 √3 √/3 | 100 √3 | 7.2/32/60 | |||||||||||
JDZX10-10B1(G) | 10000 √3 | 100 √3 | 100 √3 |
12/42/75 | / | |||||||||
10000 100 100100 √3 J3 √3 J3 | / | / | / | / | 15/15 15/20 | 30/30 | 200/200 | 圖6 FiaqUre 6 | ||||||

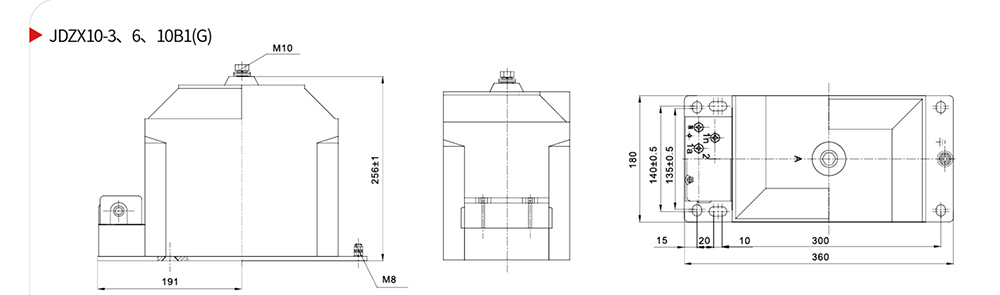

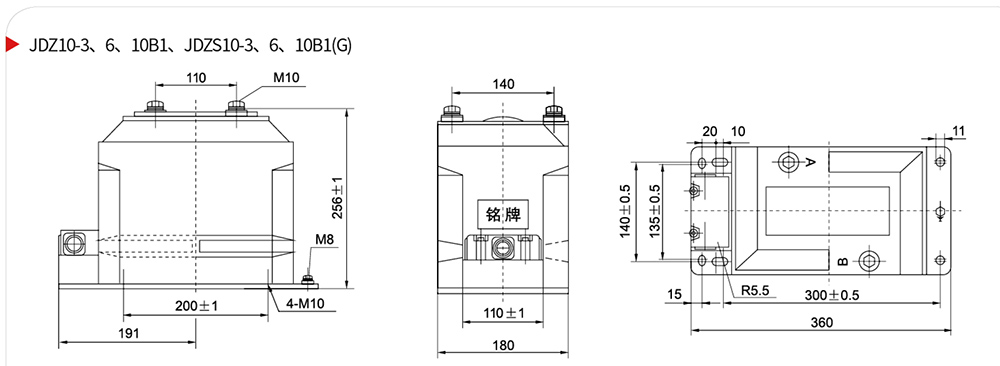

外形及安裝尺寸Overall dimension drawing
接線圖Wiring diagram
