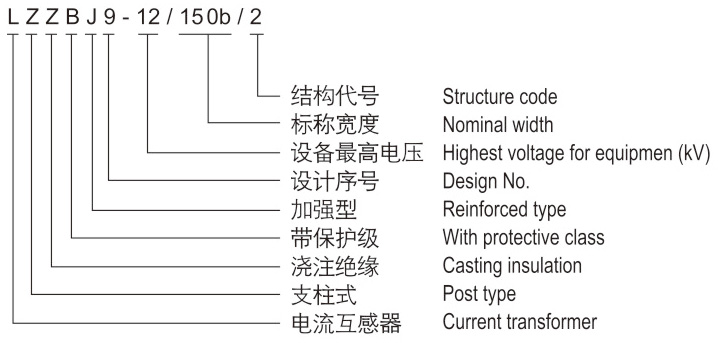

型號含義Type description
技術參數Technical data
|
額定一次電流 Rated primary current(A) |
準確級組合 Accuracy classes combination |
額定二次輸出 Rated secondary output(VA) |
短時熱電流(kA/s) Rated short-time thermal current kA/s |
動穩定電流 Rated dynamic current(kA) |
||
|
0.2S |
0.2(0.5) |
10P |
||||
|
5 |
0.2S/10P10 0.2S/10P15 0.2/10P10 0.2/10P/15 0.5/10P10 0.5/10P15 |
10 |
10 |
15*、20 |
0.3 |
0.75 |
|
10 |
0.6 |
1.5 |
||||
|
15 |
0.9 |
2.25 |
||||
|
20 |
1.2 |
3 |
||||
|
25 |
1.5 |
3.75 |
||||
|
30 |
1.8 |
4.5 |
||||
|
40 |
2.4 |
6 |
||||
|
50 |
3 |
7.5 |
||||
|
75 |
4.5 |
11.25 |
||||
|
100 |
6 |
15 |
||||
|
150 |
9 |
22.5 |
||||
|
200 |
12 |
30 |
||||
|
300 |
10*、15 |
18 |
45 |
|||
|
400 |
24 |
60 |
||||
|
500 |
30 |
75 |
||||
|
600 |
36 |
90 |
||||
|
800 |
15*、30 |
48 |
120 |
|||
|
1000 |
60 |
130 |
||||
|
1200 |
||||||
注：表中帶*數據為常規產品時的參數。
Note: In the table, the data marked with* are the parameters of general products.

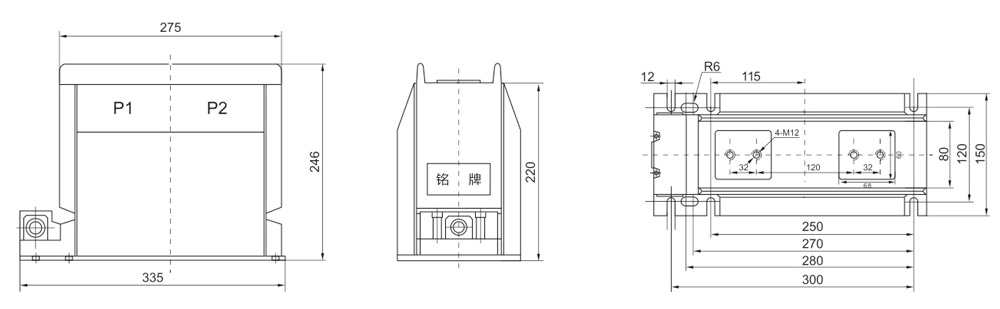

外形及安裝尺寸Overall dimension drawing
接線板Terminal Block
