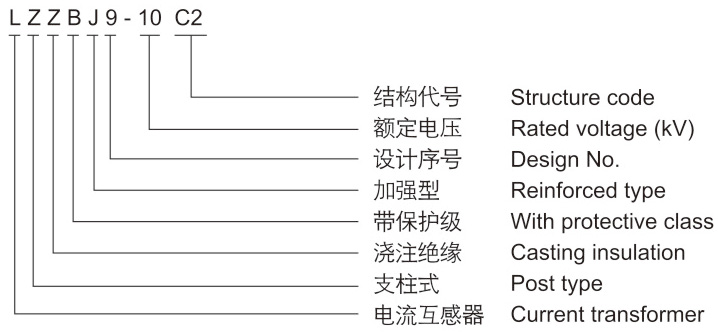

型號含義Type description
技術參數Technical data
額定一次電流 Rated primary current(A) | 準確級組合 Accuracy classes combination | 額定二次輸出 Rated secondary output(VA) | 短時熱電流(kA/s) Rated short-time thermal current kA/s | 動穩定電流 Rated dynamic current(kA) | 備注 Notes | ||||
0.2S/0.5S | 0.2 | 0.5 | 10P10 | 10P15 | |||||
5-150 | 0.2S/10P15 0.5S/10P15 0.2/10P15 0.5/10P15 10P10/10P10 |
10 |
10 |
15 |
15 |
20 |
0.0611n |
0.1511n |
兩繞組 Two windings |
200 | |||||||||
300-800 | |||||||||
1000-1500 |
15 |
20 |
20 |
30 | 63 | 130 | |||
2000-3150 | 80 | 160 | |||||||
5-150 |
0.2S/0.2/10P15 0.2S/0.5/10P15 0.2/0.5/10P15 0.5/0.5/10P15 |
10 |
15 |
15 |
15 |
0.0611n |
0.1511n |
三繞組 Three windings | |
200 | |||||||||
300-800 | |||||||||
1000-1500 |
20 |
20 |
20 | 63 | 130 | ||||
2000-3150 | 80 | 160 | |||||||
外形及安裝尺寸Overall dimension drawing
接線板Terminal Block
