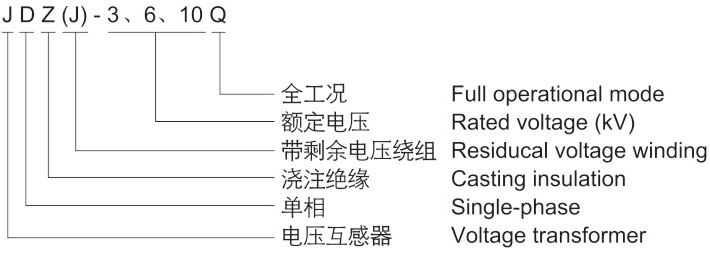

型號含義 Type description
技術參數Technical data
| 型號 Type | 額定電壓比 Rated voltage ratio (V) | 額定二次輸出Rated secondary output(VA) | 極限輸出 Max.output (VA) | 額定絕緣水平 Rated insulation level (kV) | 接線圖 Wiring diagram | |||||
| 0.2 | 0.5 | 1級 | 3級 | 0.2/0.2 | 6P | |||||
| 0.2/0.5 | ||||||||||
| JDZ-3Q | 3000/100 | 200 | 3.6/25/40 | 圖1-2 Figure1-2 | ||||||
| / | / | |||||||||
| 20 | 30 | 50 | 80 | |||||||
| JDZ-6Q | 6000/100 | 400 | 7.2/32/60 | |||||||
| IDZ-10Q | 10000/100 | 圖3-4 Figure3-4 | ||||||||
| 500 | 12/42/75 | |||||||||
| 10000/100/100 | / | / | / | / | 15/20 | |||||
| JDZJ-3Q | 3000 /100/100 | 30 | 50 | 80 | 200 | 3.6/25/40 | 圖5 Figure5 | |||
| √3 / √3/ 3 | 50 | |||||||||
| / | ||||||||||
| JDZJ-6Q | 6000 /100/100 | 20 | 50 | 80 | 200 | 7.2/32/60 | ||||
| J3 /J3/ 3 | 400 | |||||||||
| JDZJ-10Q | 10000/100 /100 √3 /J3/ 3 | 50 | 80 | 200 | 圖6 Figure6 | |||||
| 100 | ||||||||||
| 10000 /100 /100 /100 /3 J3/ √3 3 | / | / | / | / | 15/15 | 200/200 | 12/42/75 | |||

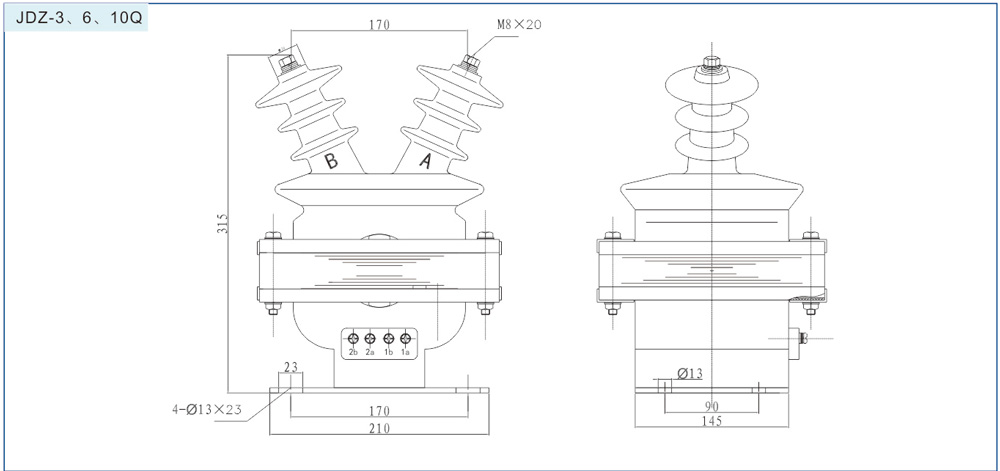

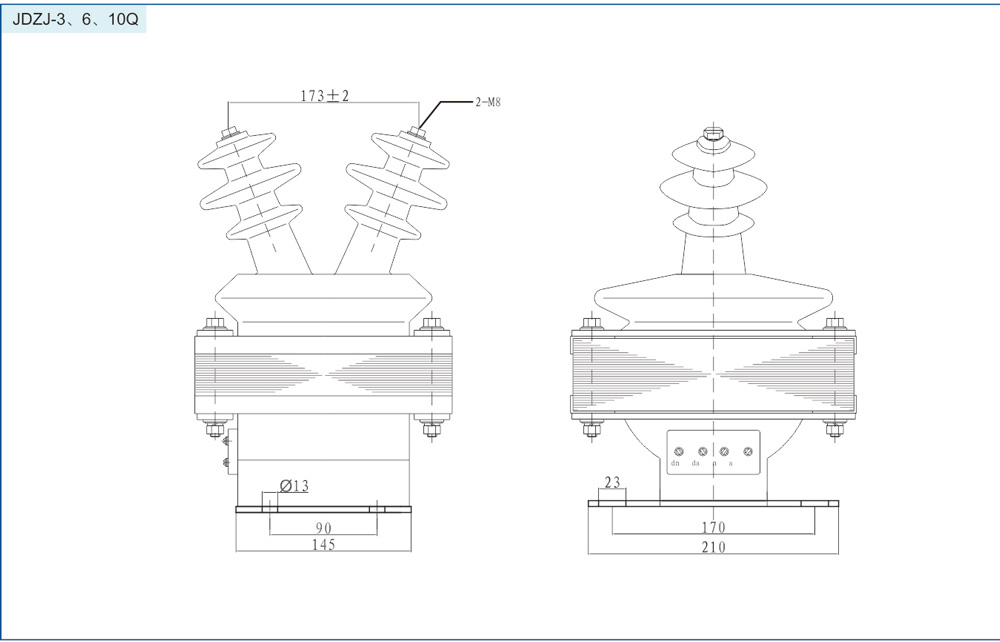

外形及安裝尺寸0verall dimension drawing

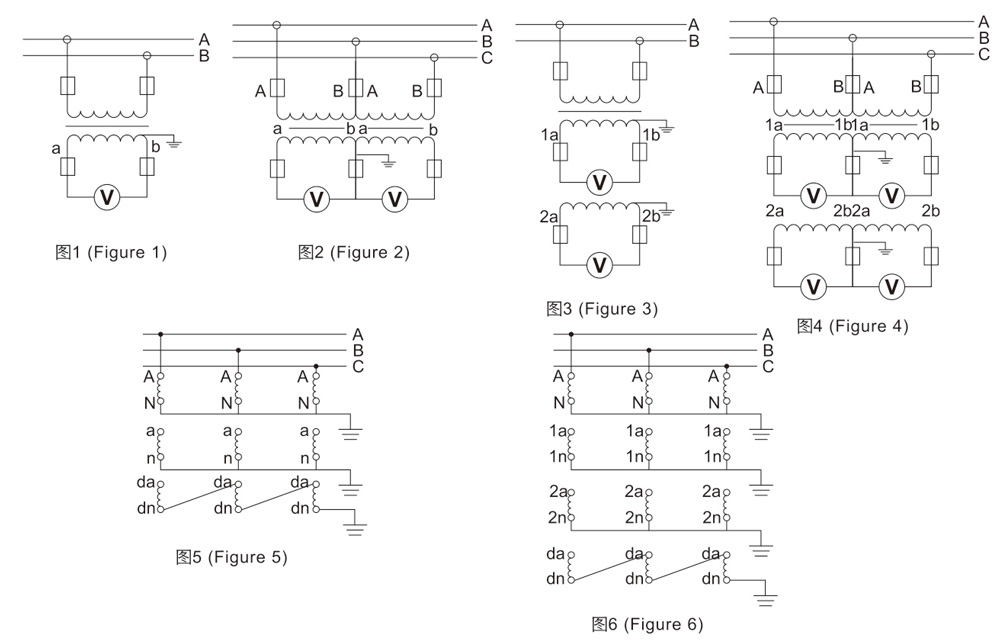

接線圖Wiring diagram
