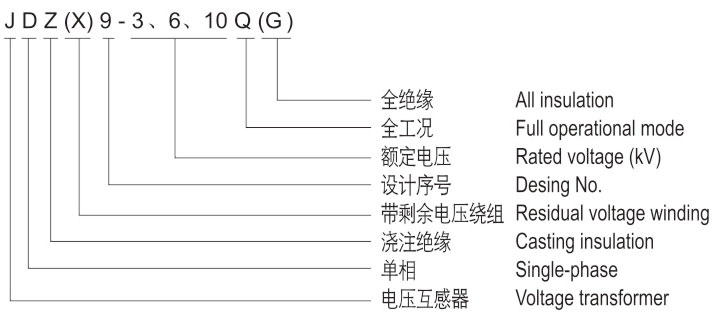

型號含義 Type description
技術參數Technical data
型號 Type | 額定電壓比 Rated voltage ration (V) | 額定二次輸出 Rated secondary output(VA) | 極限輸出 Max.output (VA) | 額定絕緣水平 Rated insulation level (kV) | 備注 Notes | 接線圖 Wiring diagram | |||||||||
0.2 | 0.5 | 1級 | 3級 | 0.2/0.2 0.2/0.5 | 0.5/0.5 | 6P | |||||||||
JDZ9-3Q | 3000/100 |
40 |
100 |
200 |
240 |
/ |
/ |
/ |
500 | 3.6/25/40 |
等同 “VKV” Same "VKV" |
圖1-圖2 Fiagure 1-2 | |||
JDZ9-6Q | 6000/100 | 7.2/32/60 | |||||||||||||
JDZ9-10Q | 10000/100 |
12/42/75 | |||||||||||||
JDZ9-10Q | 10000/100/100 | / | / | / | / | 20/20 20/30 | 30/30 | 400/400 | 圖3-圖4 Fiagure 3-4 | ||||||
JDZX9-3G | 3000 100 100 √3 √3 3 |
30 |
60 |
180 |
500 |
/ |
/ |
100 |
600 | 3.6/25/40 |
圖5 Fiagure 5 | ||||
JDZX9-6G | 6000 100 100 √3 √3 3 | 7.2/32/60 | |||||||||||||
JDZX9-10G | 10000 100 100 √3 √3 3 |
12/42/75 | |||||||||||||
10000 √3 | 100 √3 | 100 √3 | 100 3 | / | / | / | / | 15/15 15/20 | 40/40 | 400/400 | 圖6 Fiagure 6 | ||||

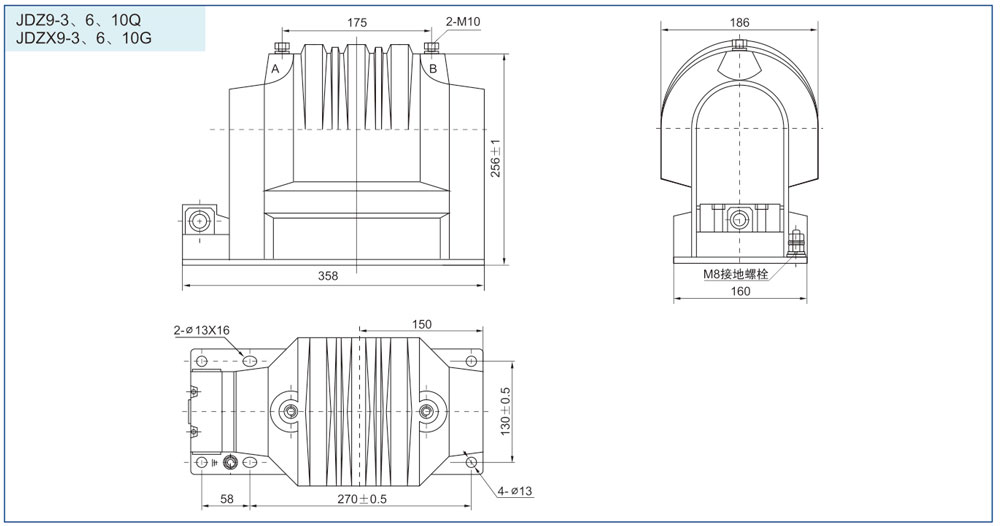

外形及安裝尺寸0verall dimension drawing

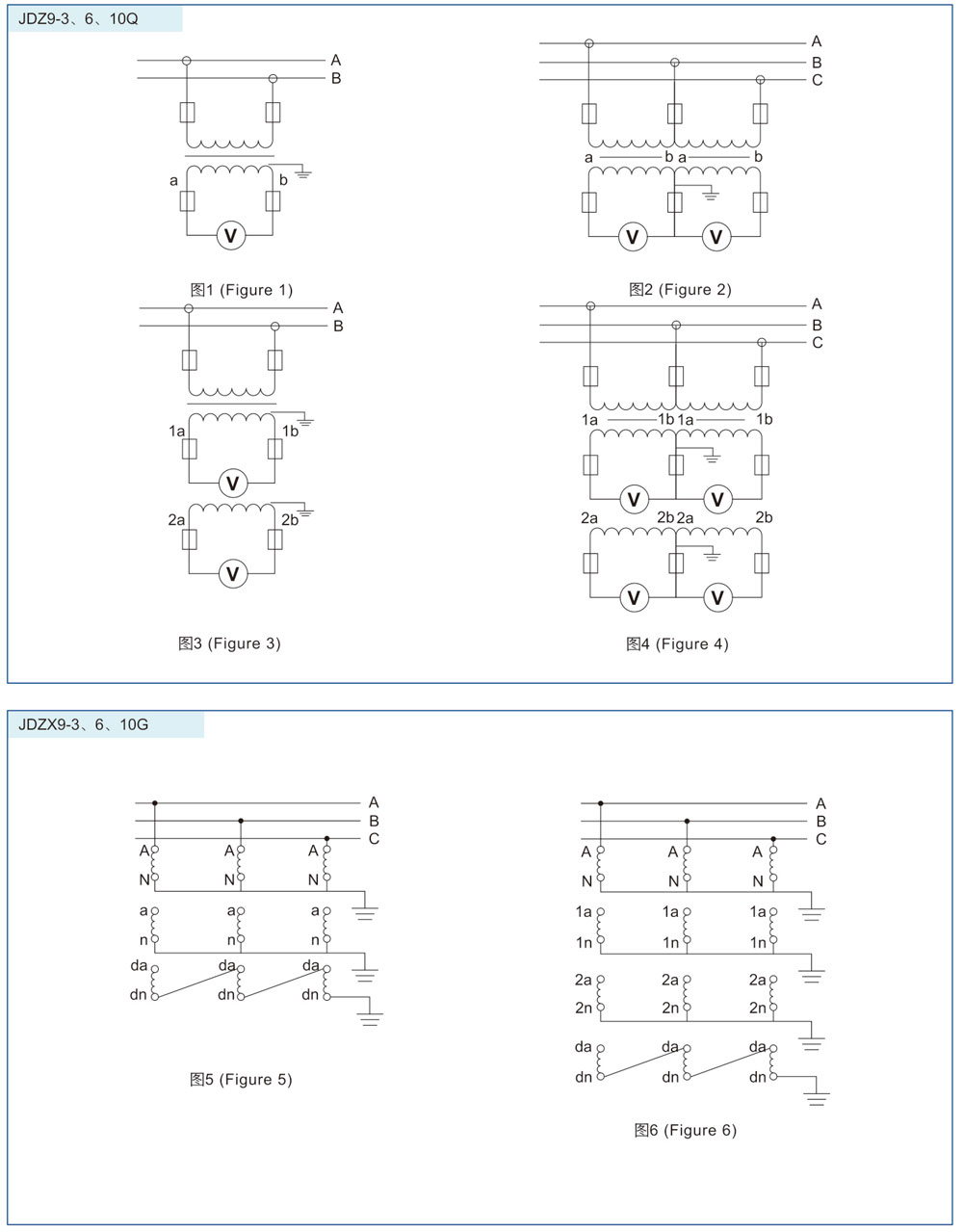

接線圖Wiring diagram
