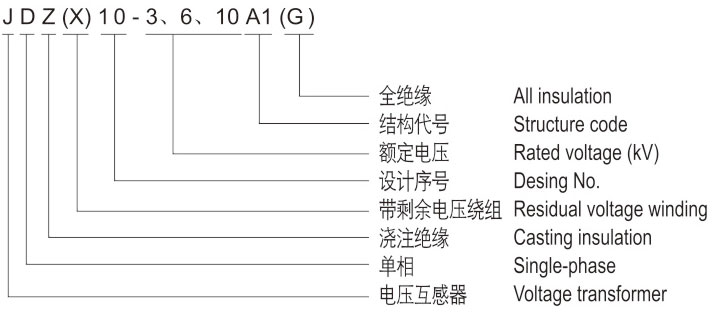

型號含義Type description
技術參數Technical data
型號 Type | 額定電壓比 Rated voltage ration (V) | 額定二次輸出 Rated secondary output(VA) | 極限輸 出Max. output (VA) | 額定絕緣 水平Rated insulation level(kV) | 備注 Notes | 接線圖 Wiring diagram | ||||||||
0.2 | 0.5 | 1級 | 3級 | 0.2/0.2 | 0.2/3 | 6P | ||||||||
0.2/0.5 | 0.5/3 | |||||||||||||
JDZ10-3A1 | 3000/100 |
30 |
50 |
100 |
200 |
/ |
/ |
300 | 3.6/25/40 |
等同 “RZLIO” Same“ RZIOL” |
圖1-圖2 Fiagurel-2 | |||
JDZ10-6A1 | 6000/100 | 7.2/32/60 | ||||||||||||
JDZ10-10A1 | 10000/100 |
12/42/75 | ||||||||||||
10000/220 | / | / | / | 500 | / | / | / | 750 | 圖3-圖4 Fiagure 3-4 | |||||
10000/100/100 | / | / | / | / | 10/10 10/15 | / | / | 200/200 |
圖5 FiaqUre 5 | |||||
10000/100/220 | / | / | / | / | / | 30/500 50/500 | / | 750 | ||||||
JDZX10-3A1(G) | 3000 √3 | 100 √3 | 100 √3 |
15 |
50 |
80 |
150 |
50 |
300 | 3.6/25/40 | ||||
JDZX10-6A1(G) | 6000 100 100 √3 √3 √3 | 7.2/32/60 | ||||||||||||
JDZX10-10A1(G) | 10000 √3 | 100 √3 | 100 √3 |
12/42/75 | ||||||||||
10000100100100 √3 √3 √3 √3 | / | / | / | / | 10/10 10/15 | 15/15 | 200/200 | 圖6 FiaqUre 6 | ||||||

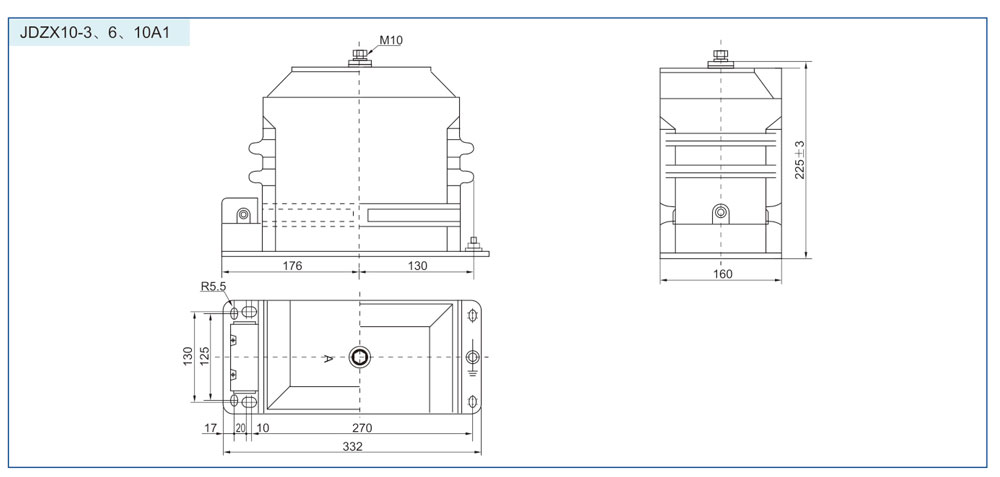

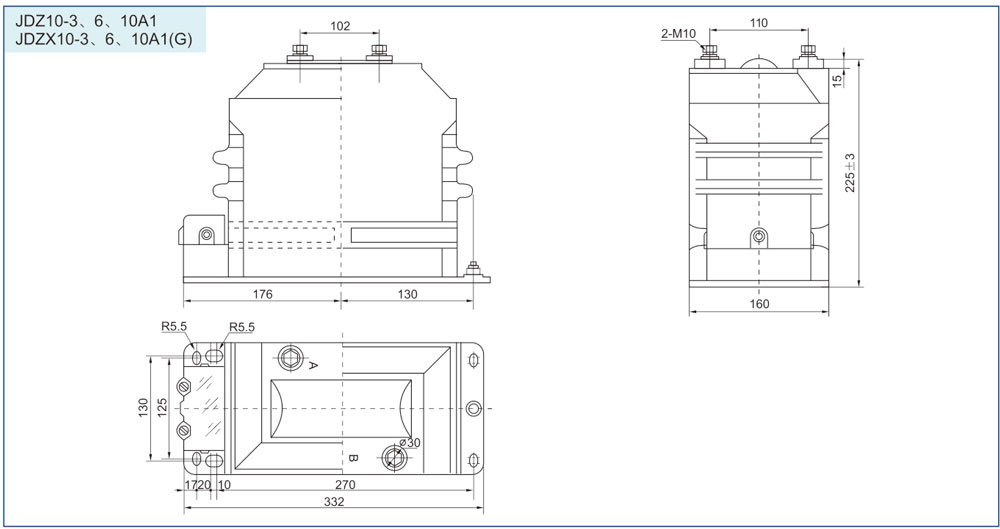

外形及安裝尺寸Overall dimension drawing

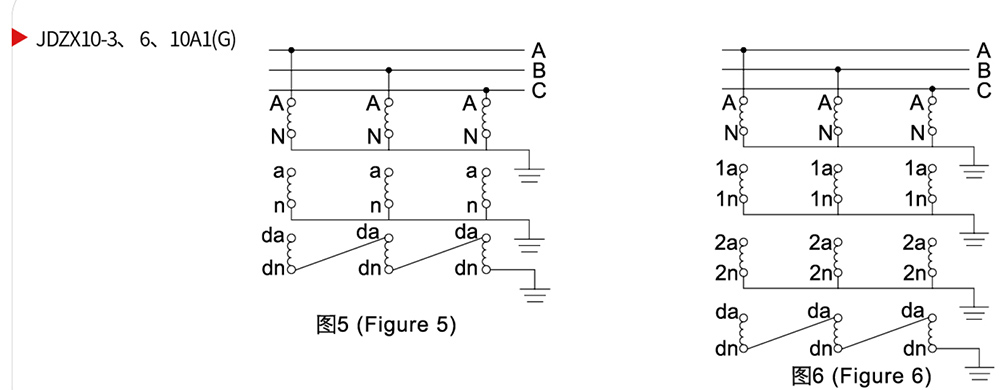

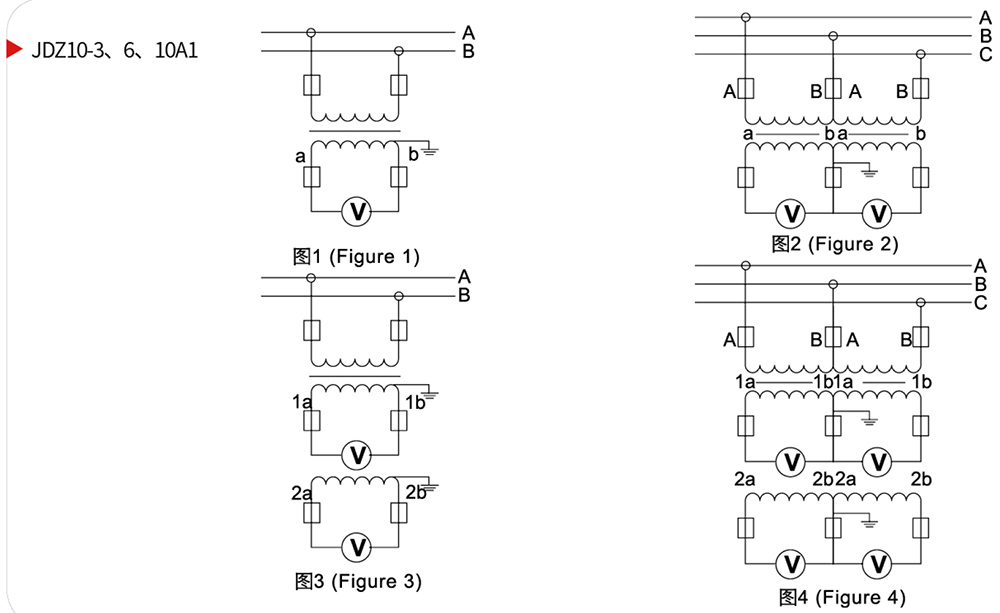

接線圖Wiring diagram
