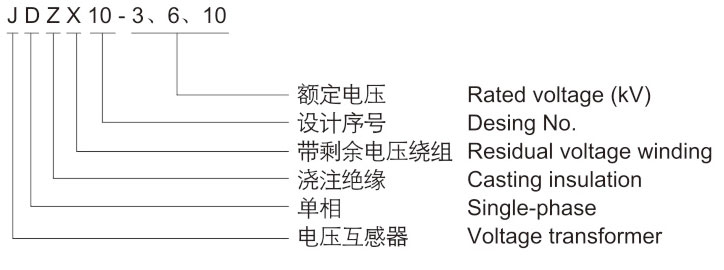

型號含義 Type description
技術參數(shù)Technical data
額定電壓比 Rated voltage ration (v) | 額定二次輸出Rated secondary output(VA) | 極限輸出Max. output (VA) | 額定絕緣水平Rated insulation level (kV) | 備注 Notes | ||||||
0.2 | 0.5 | 1級 | 3級 | 6P | ||||||
3000 √3 | 100 √3 | 100 √3 |
15 |
30 |
60 |
150 |
50 |
200 | 3.6/25/40 |
等同“REL” Same“REL” |
6000 100 100 √3 √3 √3 | 7.2/32/60 | |||||||||
10000 100 100 √3 √3 √3 | 12/42/75 | |||||||||

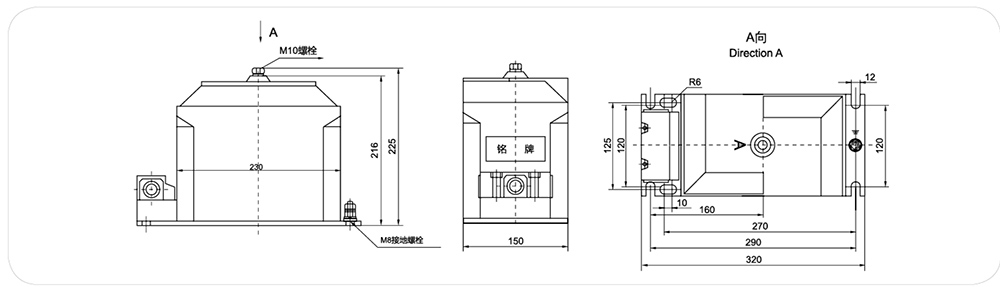

外形及安裝尺寸0verall dimension drawing

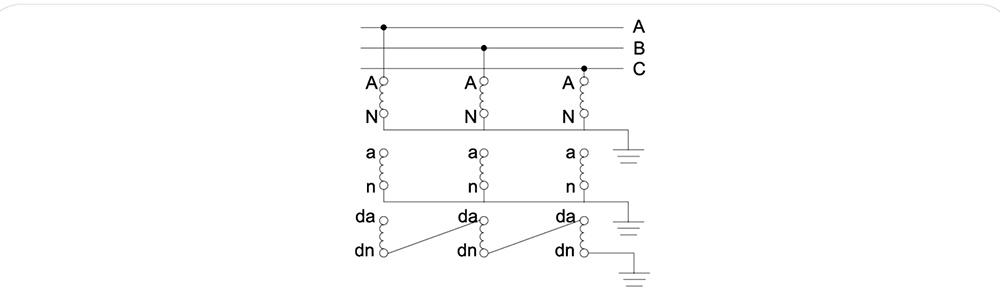

接線圖Wiring diagram
