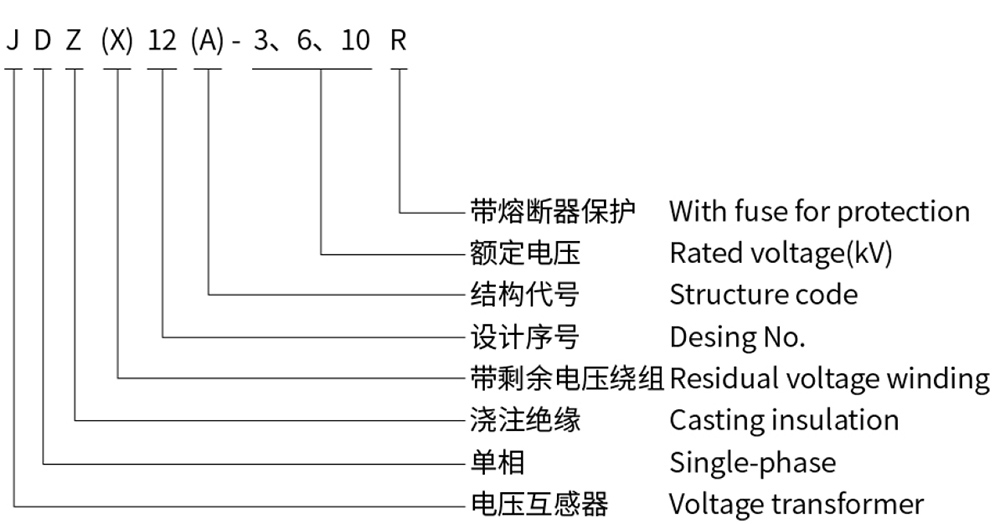

型號含義Type description
技術參數Technical data
型號 Type | 額定電壓比 Rated voltage ration(V) | 額定二次輸出 Rated secondary output(VA) | 極限輸出 Max.output (VA) | 額定絕緣水平 Rated insulation level(kV) | 接線圖 Wiring diagram | |||||
0.2 | 0.5 | 1級 | 3級 | 0.2/0.2 | 0.5/0.5 | |||||
0.2/0.5 | ||||||||||
JDZ12A-3R | 3000/100 |
30 |
90 |
250 |
400 |
/ |
/ |
1000 | 3.6/23/40 | 圖1-圖2 Fiagure 1-2 |
JDZ12A-6R | 6000/100 | 7.2/32/60 | ||||||||
JDZ12A-10R | 10000/100 |
12/42/75 | ||||||||
10000/220 | ||||||||||
10000/100/100 | / | / | / | 20/20 20/30 | 50/50 | 500/500 | 圖3-圖4 Fiagure 3-4 | |||
10000/100/220 | / | / | / | 0.2/3---30/400 0.5/3---90/400 | 800/1000 | |||||
注： 一次端子電纜接連形式：
JDZ12-3、6、10一次端子與美式200A 時型插頭配套使用。
JDZ12A-3、6、10一次端子與美式200A 大口徑肘型插頭配套使用。
Note: The first wiring point connection mode:
JDZ12-3 、 6 、 10 First wiring point and 200A Amemcan type elbow ping cooperate .
The primary terminals ofjdzl2a-3, 6 and 10 are used together with American 200A large caliber elbow plug .

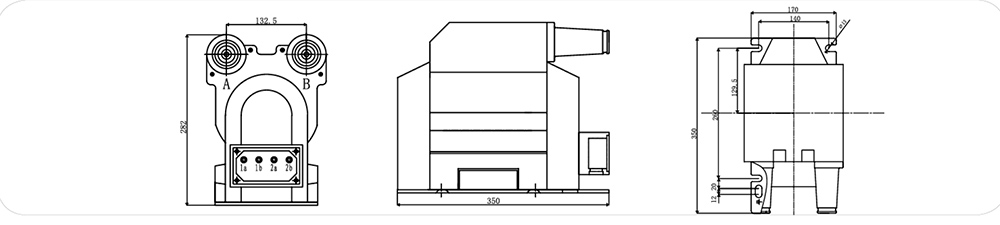

外形及安裝尺寸Overall dimension drawing

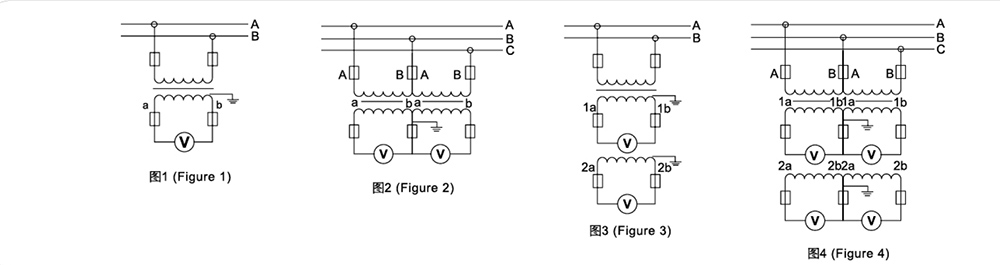

接線圖Wiring diagram
