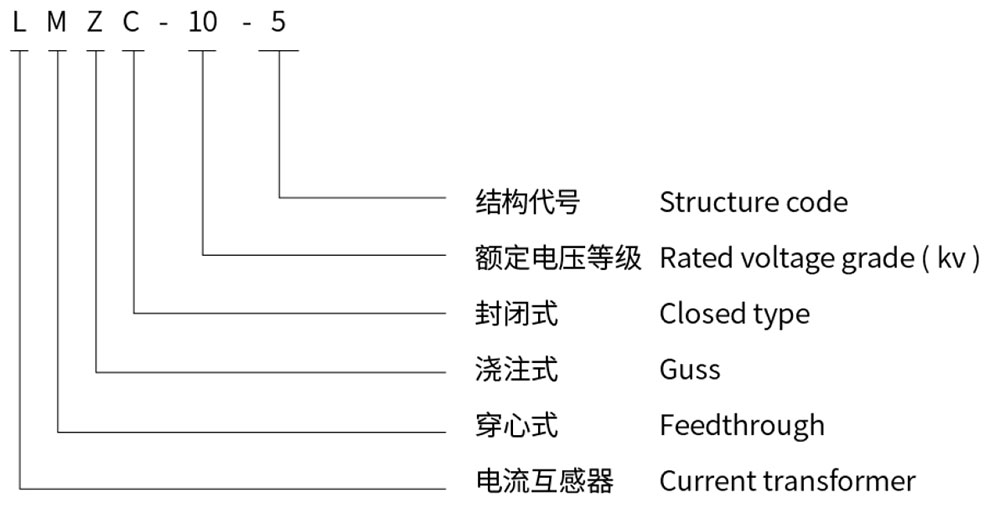

型號含義Type description
技術參數 Technical data
1.負荷的功率因數： COSφ=0.8(滯后);
2.額定二次電流：5A或 1A;
3.額定頻率：50Hz 或60Hz;
4.污穢等級：Ⅱ級；
5.環境溫度：**溫度-5 °C, 最高溫度40 °C,
日均溫度不超過30 °C;
6.海拔高度： ≤1000米；
7.產品標準： GB20840.1 GB20840.2。
1.Power factor load: COSφ=0.8(lagging);
2. Rated secondary current: 5Aor 1A;
3.Rated frequency: 50 or60Hz;
4.Anti-Pollution grade: Class ll;
5.Ambient temperature:-5° C-40°C, daily average temperature not more than 30°C
6.Altitude:≤1000m;
7.Standard:GB20840.1 GB20840.2.
技術參數表Technical data form
|
型號 Type |
用途 Purpose |
測量電流互感器 Measuring current |
保護電流互感器 Peotective Current transformer |
雙繞組電流互感器 Double winding current transformer |
|||||||
|
額定一次電流 Rated primary current |
準確級及額定負載(VA) Accuracy class and rated burden |
準確級及額定負載(VA) Accuracy class and rated burden |
準確級及額定負載(VA) Accuracy class and rated burden |
||||||||
|
0.2S |
0.2 |
0.5 |
10P5 |
10P10 |
10P15 |
0.6 |
1 |
10P10 |
10P5 |
||
|
LMZC-10- 5 |
50 |
2.5 |
|||||||||
|
75 |
2.5 |
3.75 |
3.75 |
2.5 |
|||||||
|
100 |
5 |
5 |
5 |
5 |
2.5 |
1.5 |
|||||
|
150 |
5 |
5 |
5 |
7.5 |
3.75 |
1.5 |
|||||
|
200 |
7.5 |
7.5 |
7.5 |
10 |
5 |
2.5 |
5 |
5 |
2.5 |
||
|
300 |
10 |
10 |
15 |
15 |
7.5 |
5 |
7.5 |
7.5 |
3.75 |
||
|
400 |
15 |
20 |
20 |
20 |
10 |
7.5 |
7.5 |
7.5 |
2.5 |
5 |
|
|
500 |
20 |
25 |
25 |
25 |
10 |
7.5 |
10 |
10 |
2.5 |
5 |
|
|
600 |
20 |
25 |
30 |
25 |
10 |
7.5 |
10 |
10 |
3.75 |
7.5 |
|

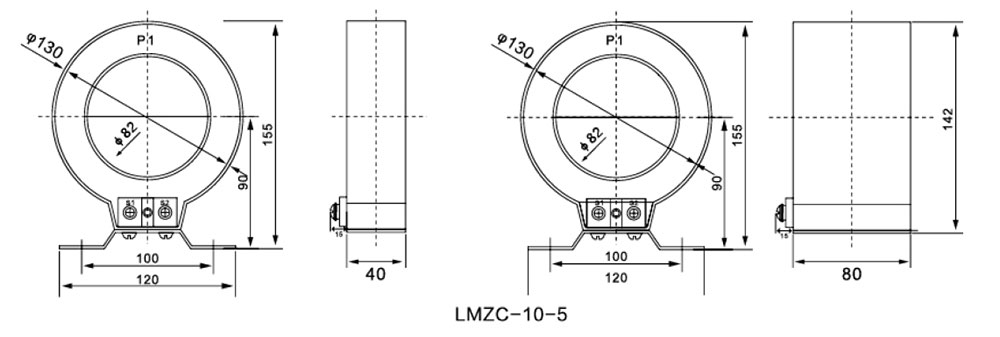

外形及安裝尺寸Overall dimension drawing
