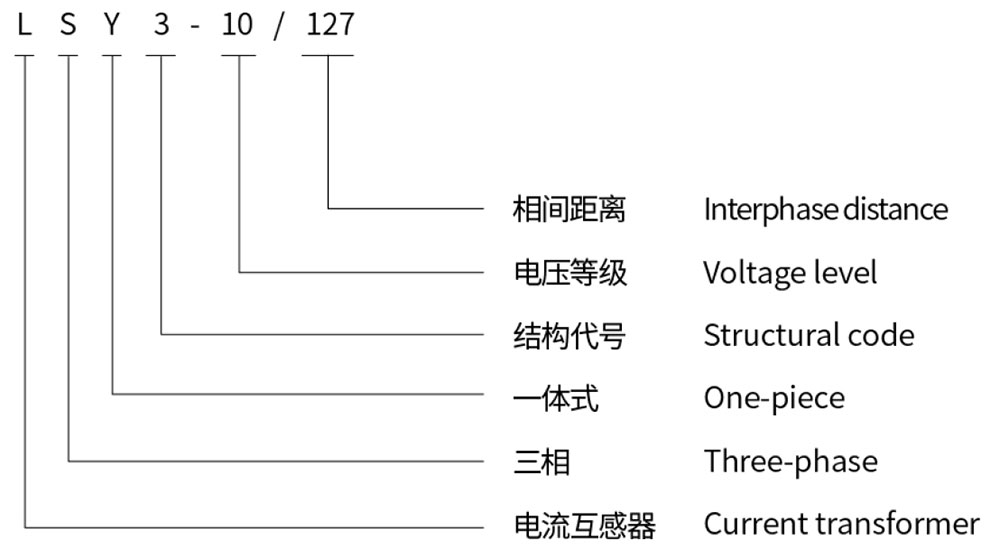

型號含義 Type description
技術(shù)參數(shù)表Technical data form
額定電流比、準確級及其額定負載如下所示，額定二次電流5A或1Ao
The rated current ratio, accuracy level and its rated load are shown below, with rated secondary current 5A or 1A.
用途Use | 測量電流互感器 Measuring current transformers | 保護電流互感器 Protection current transformer | 雙繞組電流互感器 Double winding current transformer | |||||||
額定一次電流 Stabilize the primary current | 準確級及額定負載(VA) Accuracy and rated load (VA) | 準確級及額定負載(VA) Accuracy and rated load (VA) | 復(fù)合準確級及額定負載(VA) Accuracy class and rated burden | |||||||
0.2s | 0.2 | 0.5 | 10P20 | 10P15 | 10P10 | 0.2s | 0.5 | 10P15 | 10P10 | |
75 | 1 | 1 | ||||||||
100 | 2.5 | 1 | ||||||||
150 | 2.5 | 2.5 | 1.5 | |||||||
200 | 2.5 | 2.5 | 5 | 2.5 | 5 | |||||
300 | 2.5 | 2.5 | 5 | 5 | 2.5 | 5 | ||||
400 | 5 | 5 | 5 | 7.5 | 5 | 7.5 | ||||
500 | 5 | 5 | 10 | 10 | 5 | 10 | ||||
600 | 5 | 5 | 10 | 10 | 5 | 10 | ||||
800 | 10 | 10 | 10 | 10 | 5 | 10 | ||||
注：不銹鋼彈簧卡根據(jù)用戶要求定制
Note: Stainless steel spring card is customized according to user's requirements

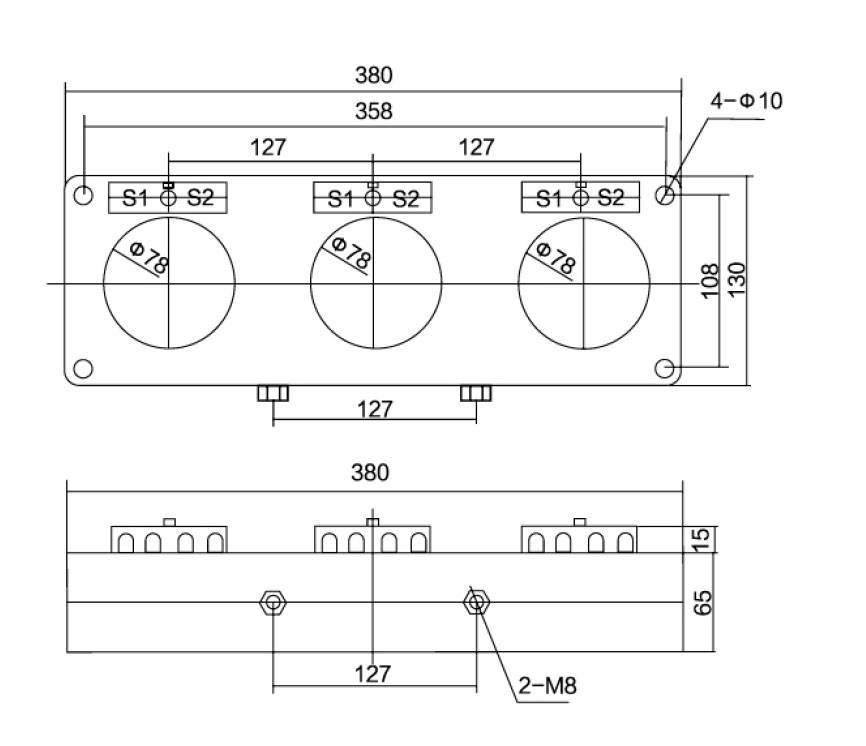

外形及安裝尺寸Overall dimension drawing
