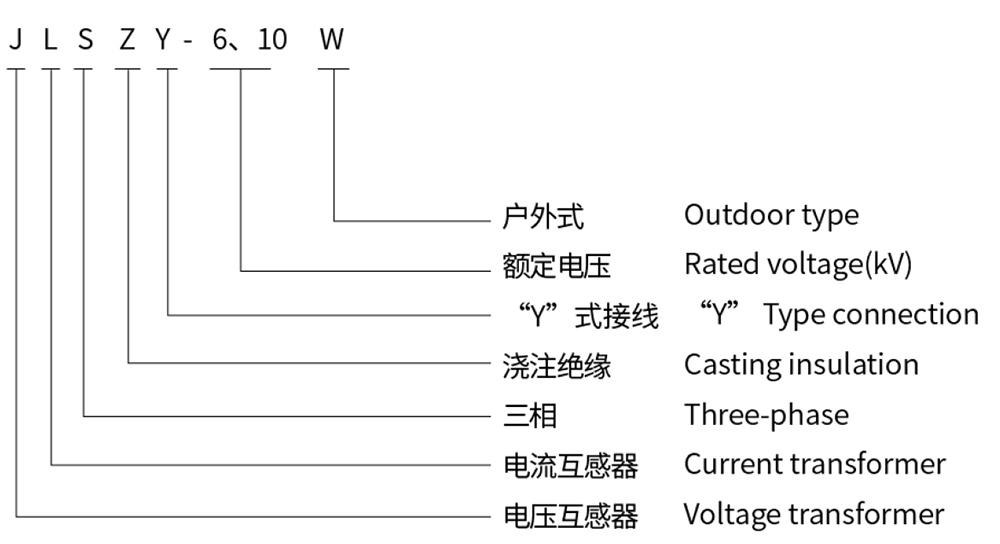

技術參數Technical data
技術參數Technical data
電壓部分參數Rarameter voltgae part | ||||
型號Type | 額定電壓比 Rated voltgae ratio(V) | 準確級及額定二次輸出 Accuracy class and rated secondary output(VA) | 極限輸出 Max.output(VA) | 額定絕緣水平 Rated insulation level(kV) |
JLSZY-6W | 6000/100 | 0.2---15 0.5---20 1--30 |
300 | 7.2/32/60 |
JLSZY-10W | 10000/100 | 12/42/75 | ||
電流部分參數Rarameter of current part | ||||
額定一次電流(A) 單變比 Rated primary current(A) Single ratio | 額定二次電流(A) Rated secondary current(A) | 額定短時熱電流 (kA/S有效值) Rated short time thermal current (kA/s RMS) | 額定動穩定電流 (kA峰值) Rated dynamic current (kA peak) | 準確級及額定二次輸出 Accuracy class and rated secondary output(VA) |
5 |
5 | 0.3 | 0.75 |
10VA/0.2S級 |
7.5 | 0.3 | 0.75 | ||
10 | 0.6 | 1.5 | ||
15 | 0.9 | 2.25 | ||
20 | 1.2 | 3 | ||
25 | 1.5 | 3.75 | ||
30 | 1.8 | 4.5 | ||
40 | 2.4 | 6 | ||
50 | 3 | 7.5 | ||
75 | 4.5 | 11.25 | ||
100 | 6 | 15 | ||
150 | 9 | 22.5 | ||
200 | 12 | 30 | ||
250 | 12 | 30 | ||
300 | 18 | 45 | ||
400 | 24 | 60 | ||
500 | 30 | 75 | ||
600 | 36 | 90 | ||
750 | 36 | 90 | ||
800 | 48 | 120 | ||
1000 | 60 | 130 | ||

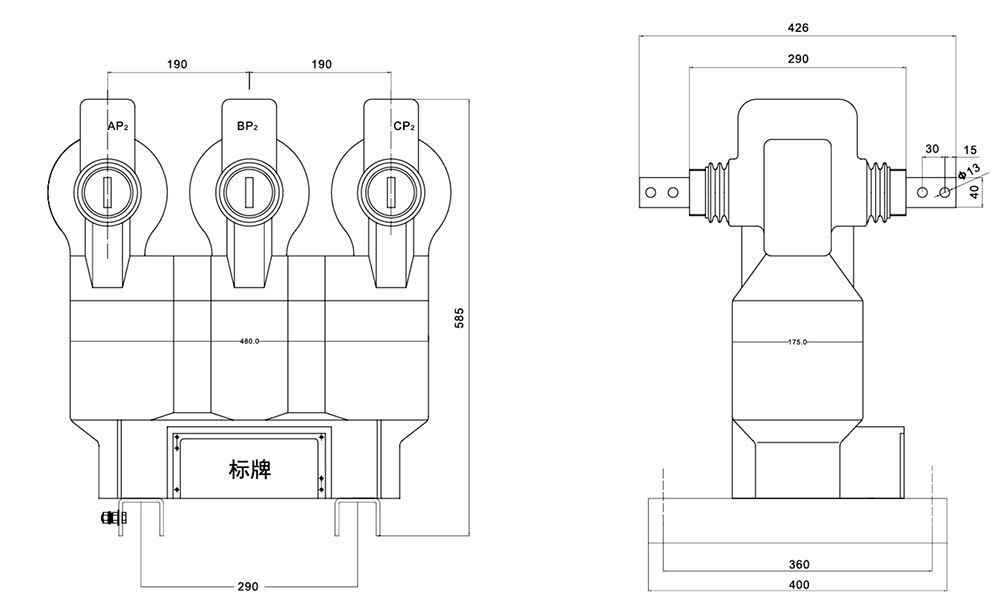

外形及安裝尺寸Overall dimension drawing

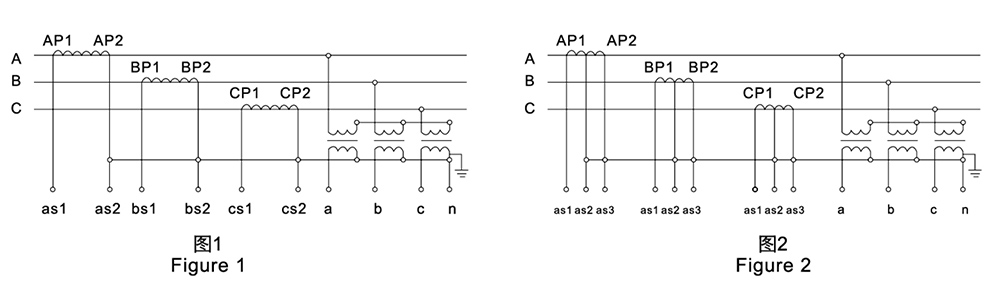

接線圖Wiring diagram
