型號含義Type description
技術(shù)參數(shù)Technical data
額定電壓比 Rated voltage ration (V) | 額定二次輸出 Rated secondary output(VA) | 極限輸出 Max.output (VA) | 額定絕緣水平 Rated insulation level(kV) | 備注 Notes | 接線圖 Wiring diagram | ||||||
0.2 | 0.5 | 1級 | 3級 | 0.2/0.2 0.2/0.5 | 0.5/0.5 | 6P(3P) | |||||
35000/100 /100 3 √3 3 |
30 |
90 |
180 |
500 | / | / |
100 |
600 |
40.5/95/200 | 等同 "VKI" | 圖 1 Fiagure 1 |
35000 100 /100 /3 3 |
1 |
1 |
1 |
1 | 15/15 15/20 | 45/45 |
100 | 300/300 | 圖2 Fiagure 2 | ||
外形及安裝尺寸Overall dimension drawing

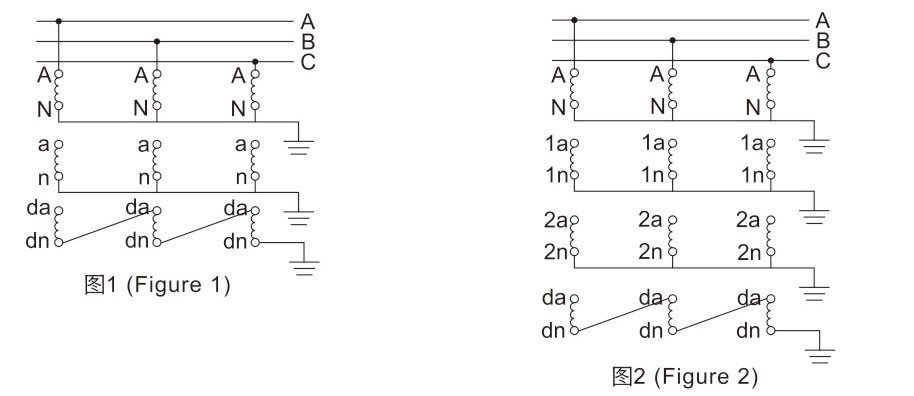

接線圖Wiring diagram
